Details

The product has very low output residual voltage, and can ensure the fast response time. The interface mode has the choices of RJ11, RJ45, connection terminals and the like; the protective lines can be divided into the single line type, double line type or multi-line type; the product can be used separately, and is typically applied to a telephone, ADSL, DDN,ISDN, fax machine, modem and SPC exchange.

Model		HD-XC- SJ5	HD-XC- SJ12	HD-XC- SJ24	HD-XC- SJ48	HD-XC- SJ68	HD-XC- SJ120	HD-XC- SJ150	HD-XC- SJ180
Nominal working voltage Un		5V	12V	24V	48V	68V	120V	150V	180V
Maximum continuous working voltage Uc		6.8V	15V	28V	54V	72V	130V	156V	190V
Nominal discharge current In(8/20ms)		2.5KA
Maximum discharge current Imax (8/20ms)		5KA
Voltage protection level Up	（X-X）	＜45V	＜53V	＜85V	＜120V	＜150V	＜180V	＜220V	＜250V
	（X-G）	＜300V	＜300V	＜300V	＜350V	＜350V	＜350V	＜350V	＜350V

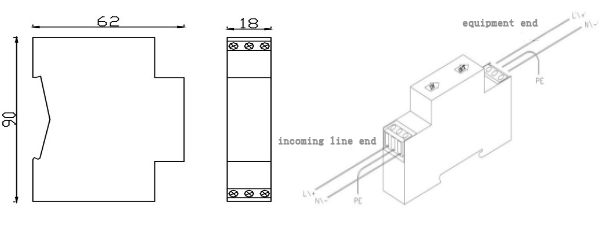

External dimension		90×62×18mm
Response time Ta		≤1ns
Working temperature range Tup		-40℃至+70℃
Insertion loss		≤0.2dB
Insertion loss		≤1Ω
Transmission rate		10Mbit/s
Degrees of protection		IP30
Enclosure material		Fireproof PBT
Interface mode		Series connection
Cross section of installed conductor		The Maximum of signal line is 2.5 mm2 stranded wire / The Maximum of shielding line is 4 mm2 stranded wire
Interface mode		Connection terminal

Installation method：

Put an arrester in series at the leading end of the line interface of the protected equipment.”OUT” is equipment end and “IN” is incoming line end.Connect the arrester ground terminal and lightning protection ground lead well (suggested earth resistance≤4Ω)
