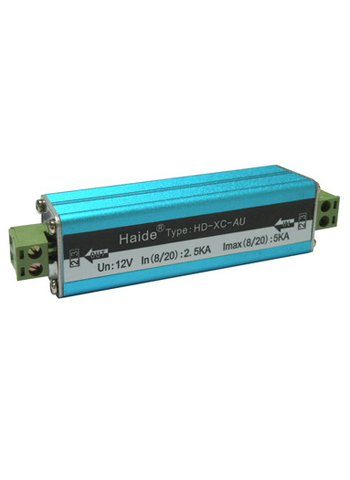

	Audio data line lightning arrester




The product is suitable for the protection of a monitor head, a decode circuit, an entrance guard data line, background music, a visual-speaking system, an intelligent water meter, an intelligent gas meter, an intelligent electric meter, a wide-used ID system and a fireproof alarm line, and prevents the damage of line induction overvoltage equipment due to earth potential increase, has low output residual voltage, little insertion loss and double over-current protection, and is suitable for the protection of the ports such as the RJ11, connection terminals, RS232 and so on. And the protective lines can be divided into the single circuit type, double circuit type or multiple-circuit type.











					Model











					HD-XC-YT











					HD-XC-XF











					HD-XC-DATA












					HD-XC-AU













					HD-XC-DATA/4











					Nominal working voltage Un











					6.8V











					12V











					24V











					6.8V







					12V












					24V











					6.8V











					24V











					12V











					110V











					24V










					Maximum continuous working voltage Uc











					7.5V







					15V








					32V








					7.5V








					15V








					32V














					7.5V














					32V














					15V












					180V











					 39V










					Nominal discharge current In (8/20ms)











					5KA
















					2.5KA










					Maximum discharge current Imax(8/20ms)











					10KA

















					5KA










					Rated load current











					1.5A











					3A











					1.5A










					Voltage protection level Up in 1KV/ms






					(X-X)







					16V








					25V








					42V








					16V








					25V








					42V








					15V








					42V








					25V








					270V








					51V











					(X-G)







					16V








					25V








					42V








					16V








					25V








					42V








					15V








					42V








					25V








					270V








					51V











					Response time Ta







					≤1ns











					Insertion loss







					≤0.2dB











					Insertion resistance







					≤4Ω







					 NO







					≤1Ω








					≤1Ω







					 NO







					≤1Ω











					Number of protection lines






					Single-line (2,3)/double-line (1/4,2/3)






					8-line full protection










					Degrees of protection






					IP30










					Interface mode






					Connection terminal

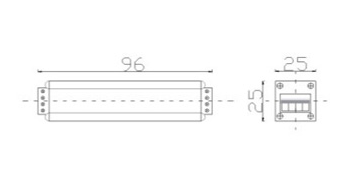

					External dimension






					 96×25×25mm







					96×25×25mm








					96×25×25mm








					96×25×25mm








					100×50×20mm











					Enclosure material






					Shielded metallic aluminum






					Fireproof rubber enclosure


















































































































The front end of the line interface of a protected device is connected in series with the lightning arrester; the OUT is the device end, the IN is the incoming line end; and the grounding end and the lightning protection ground wires  (preferred the grounding resistance≤4Ω) of the lightning arrester are given good electric connection.
