Lightning protection box for charging pile  HD-CDZ













            Online Inquiry























































































                        Click Refresh Verification Code












































    Details

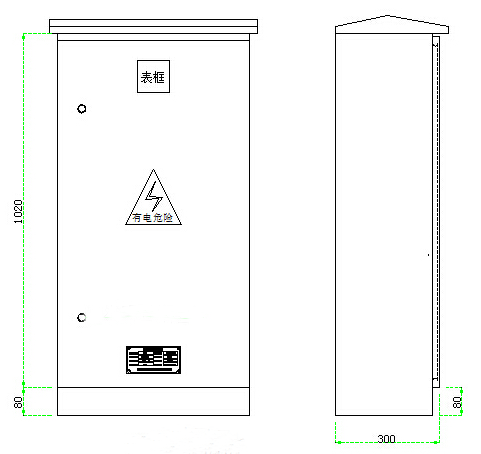

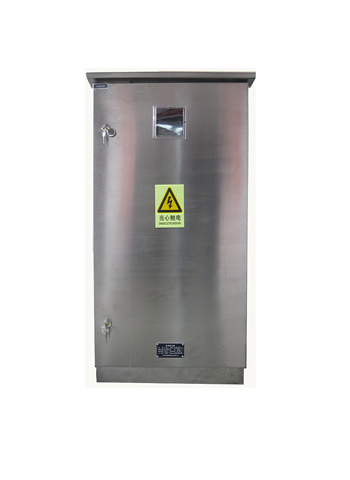

	Lightning protection distribution box for Charging pile





	Electric surge protector of composite low-voltage distribution system, which is in the form of a box, is designed according to IEC standard. It adopts the most advanced technology of preignition clearance and automatic matching of energy and has validation detection indication, powerful discharge capacity of lightning current. It can be used for the general supply of building.This lightning arrester is very convenient to be maintained. It connects with the circuit in parallel and has no limit to the power of equipment fixed later.



















						Model






						HD-CDZ










						Nominal working voltage Un






						380V/220V










						Lightning impulse current




						（10/350us）






						25KA










						Nominal discharge current




						（8/20us）






						100KA










						Voltage protection level Up






						1.5KV










						Afterflow restraint If






						3KA










						Response time Ta






						≤25ns










						Operating temperature range Tup






						-40℃to+70℃










						Protection grade






						IP55










						Three-phase load power






						7KW/10KW










						Three-phase load port






						Two ports










						Single phase load power






						7KW










						Single-phase load port






						Two ports










						Total load power






						31KW
