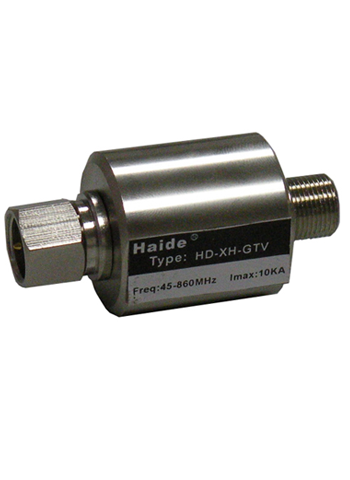

	 Television line lightning arrester





	TV trunk surge protector is suitable for lightning and surge protection of CATV system equipment such as cable TV signal lines, TVs, and TV amplifiers,and so on . It has wide range of applicable frequency, large discharge leakage current, double protections of overvoltage and voltage limiting. RCA interface or F interface, installation and maintenance is very convenient, the highest flow capacity can be up to 10KA, insertion loss of less than 0.2dB, data transfer rate <860M.



















						Model











						HD-XH-GTV










						Working frequency











						45~860 MHz










						Nominal discharge current In (8/20ms)











						5KA










						Maximum discharge current Imax (8/20ms)











						10KA

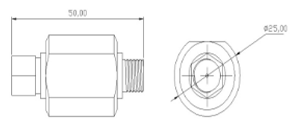

						External dimension











						50*25*25mm










						Response time Ta











						≤100ns










						Working temperature range Tup











						-40℃至+70℃










						Insertion loss











						≤0.2dB










						Input-output impendence






						                75W










						Degrees of protection









							IP30













						Enclosure material






						Shielded metallic aluminum










						Interface mode






						CATV/F port of the Metrix system










						Applied range






						cable television line













	Installation method：





	Put an arrester in series at the leading end of the line interface of the protected equipment.”OUT” is equipment end and “IN” is incoming line end.Connect the arrester ground terminal and lightning protection ground lead well (suggested earth resistance≤4Ω)
