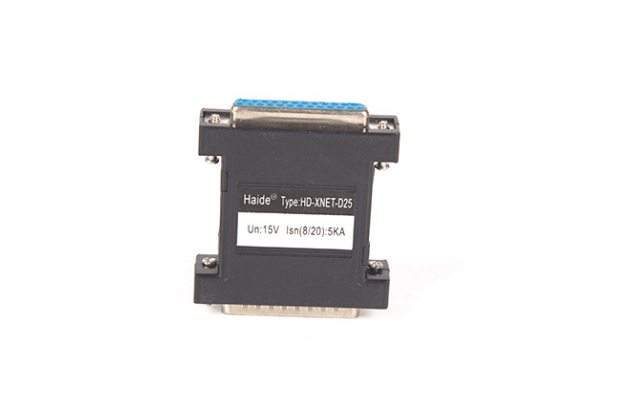

RS232 interface lightning arrester HD-XNET-D25

    Online Inquiry
    Click Refresh Verification Code

    Details

    The RS232 interface type lightning protection device has 25-core,15-core or 9-core D-type standard joints,which can provide accurate over-voltage protection for communication lines of standard or non-standard definition.This series of product are especially suitable for the subtle protection of the corresponding interface of the computer system of the institutions,financial industry,security industry,insurance industry and so on.And further can be used as the surge impulse resistance protection device of a printer interface.




    Model

    HD-XNET-D9

    HD-XNET-D15

    HD-XNET-D25

    Nominal voltage Un

    15V

    15V

    15V

    Maximum continuous voltage Uc

    18V

    18V

    18V

    Withstanding impulse voltage Uoc

    3KV

    3KV

    3KV

    Impact of current Iimp

    1.5KA

    1.5KA

    1.5KA

    Nominal discharge current In(8/20μs)

    1.5KA

    1.5KA

    1.5KA

    Maximum discharging current  Imax(8/20μs)

    3KA

    3KA

    3KA

    Voltage protection level Up

    X-X

    100V

    100V

    100V

    X-G

    400V

    400V

    400V

    External dimension

    62*33*17mm

    62*56*17mm

    62*56*17mm

    Interface mode

    RS232

    RS232

    RS232

    Response time Ta

    1ns

    Operating temperature range Tup

    -40 to +70

    Insertion loss

    0.2dB

    Protection grade

    IP30

    Data Transmission rate Vs

    40Mbps

    Sheathing material

    Flame retardant thermoplastic material

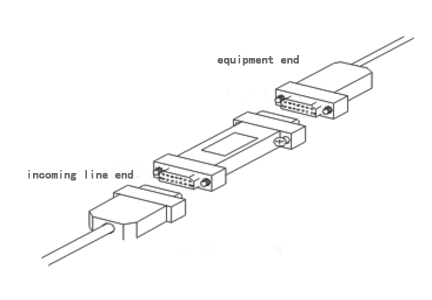

    Mode of connection

    connection in series

    Interface mode

    Type D interface
