Lightning arrester for network  HD-XNET-RJ45













            Online Inquiry























































































                        Click Refresh Verification Code












































    Details






	 Surge protector for network





	Computer network signal surge protector is designed according to the standard of IEC electric surge protector.It is considered fully that the electrode capacitance and distributed capacitance would lesson data signal with small insertion loss and lower output residual voltage.It has superior transmisson performance ,quick action,less insertion loss,RJ45 interface,4 wires and 8 wires protection and 100M bandwidth.



























						Model






						 HD-XNET-RJ45/4






						 HD-XNET-RJ45/8










						Rated voltage un






						5V






						 12V










						Maximum sustained voltage Uc






						 12V






						 15V










						Nominal discharge current In（8/20ms）






						 2.5KA






						300A










						Maximum discharging current Imax（8/20ms）






						5KA






						 600A










						 Voltage protection level Up






						（X-X）≤70V






						（X-X）≤85V










						（X-G）≤400V






						（X-G）≤85V










						Series impedance R






						 1Ω






						 無

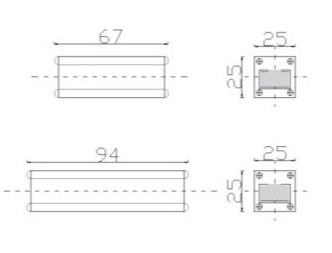

						Dimension






						 94×25×25mm






						 67×25×25m










						Response time Ta











						≤1ns










						Insertion loss











						≤0.2dB










						Operating temperature range Tup











						-40℃至+70℃










						Number of guard wire






						1,2,3,6 wire






						8-wire full protection










						Protection grade






						IP20










						Sheathing material






						Shielding metallic aluminum










						Mode of connection






						Connection in series










						Interface mode






						RJ45














     Installation method：



     Put an arrester in series at the leading end of the line interface of the protected equipment.”OUT” is equipment end and “IN” is incoming line end.Connect the arrester ground terminal and lightning protection ground lead well (suggested earth resistance≤4Ω)
