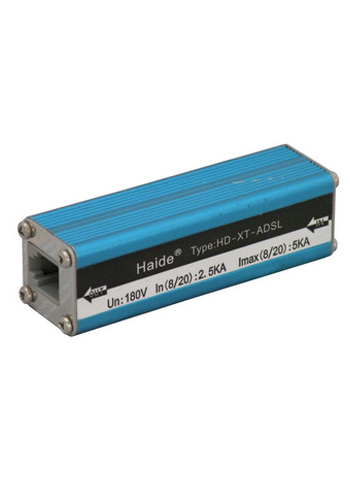

	ADSL Communication line lightning arrester




	This product has very low output residual voltage and it can ensure the quick response time.The interface mode has the choices of RJ11,RJ45 and connection terminal,and so on.




	It is typically applied to telephone,ADSL,DDN,ISDN,fax machine,modem and SPC exchange.






































					MODEL






					HD-XT-ADSL










					Nominal working voltage Un






					180V










					Maximum continuous working voltage Uc






					200V










					Nominal discharge current In（8/20μs）






					2.5KA










					Maximum discharging current Imax（8/20μs）






					5KA










					Voltage protection level Up






					（X-X）






					400V










					（X-G）






					400V










					Response time Ta






					≤1ns










					Insertion loss






					≤0.2dB










					Series impedance R






					4Ω










					Data transmission rate






					20M










					Protection grade






					IP20










					Sheathing material






					Shielding metallic aluminum










					Operating temperature range Tup






					-40℃至+70℃

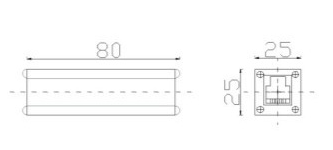

					External dimension






					80×25×25mm
