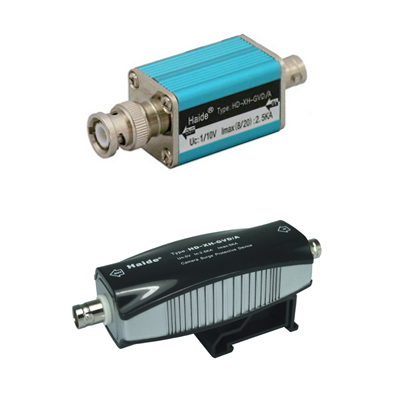

Surge protector for video signal
This product has the advantages of fast action time,little insertion loss,accurate clamping and low output residual voltage,it can also effectively restrain overvoltage pulse inducted on the signal transmission line of a camera gun to protect a video monitoring device from damage due to overvoltage pulse.It is a new video signal protection product and it is suitably used in video monitoring devices such as the camera gun,a video distributor and a video matrix switcher.
|
Model
|
HD-XH-GVD
|
HD-XH-GVD/A
|
HD-XH-GVD/B
|
HD-XH
|
|
Nominal working voltage Un
|
±5V
|
±5V
|
±5V
|
±5V
|
|
Maximum continuous working voltage Uc
|
±6.8V
|
±6.8V
|
±6.8V
|
±6.8V
|
|
Withstanding impulse voltage Uoc
|
3KV
|
5KV
|
10KV
|
10KV
|
|
Impact current Iimp
|
1.5KA
|
1.5KA
|
1.5KA
|
1.5KA
|
|
Nominal discharge current In （8/20μs）
|
1.5KA
|
2.5KA
|
5KA
|
5KA
|
|
Maximum discharging current Imax（8/20μs）
|
3KA
|
5KA
|
10KA
|
10KA
|
|
Voltage protection level Up
|
X-X
|
35V
|
40V
|
70V
|
70V
|
|
X-G
|
300V
|
400V
|
400V
|
400V
|
|
Response time Ta
|
≤1ns
|
|
Bandwidth FG
|
40MHz
|
|
Operating temperature range Tup
|
-40℃ to +70℃
|
|
Insertion loss
|
≤0.2dB
|
|
Insertion resistance
|
≤4Ω
|
|
Protection grade
|
IP30
|
|
Sheathing material
|
Shielding metallic aluminum / Shielding plastic fire-proof material
|
|
Interface mode
|
BNC
|
|

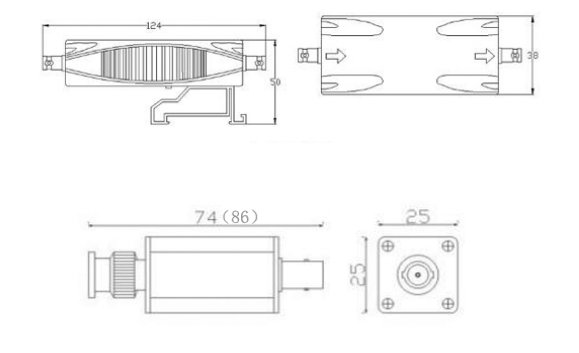

External dimension
|
86*25*25/74*25*25/124*50*38mm
|
Installation method:
Put an arrester in series at the leading end of the interface of lines of the protected equipment.”OUT” is equipment end and “IN” is incoming line end.Connect the arrester ground terminal and lightning protection ground lead well (suggested earth resistance≤4Ω)
