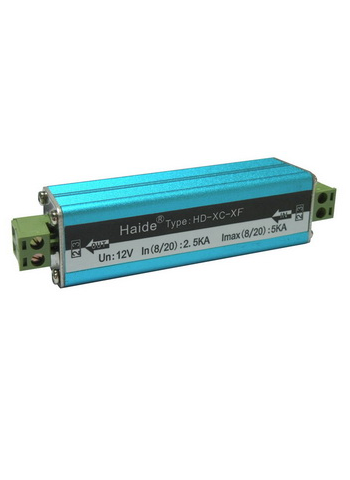

This product is suitable for the protection of Monitor platform, decoding lines, access control data lines, background music, video intercom, intelligent three meter, a wide-used card and fire alarm circuits.It can prevent the damage of line induction overvoltage equipment due to earth potential increase and has low output residual voltage,little insertion loss and double overcurrent protection.
Model
HD-XC-XF
Nominal working voltage Un
12V
24V
Maximum continuous working voltage Uc
15V
32V
Nominal discharge current In (8/20ms)
5KA
5KA
Maximum discharge current Imax(8/20ms)
10KA
10KA
Rated load current
1.5A
1.5A
Voltage protection level Up
(X-X)
110V
150V
(X-G)
350V
350V
Response time Ta
≤0.1ns
Insertion loss
≤0.2dB
Insertion resistance
≤1Ω
Number of protection lines
2,3
Protection grade
IP30
Interface mode
Connection terminal
External dimension

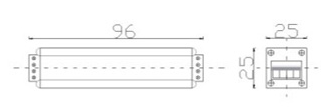

96*25*25/113*50*38mm
Sheathing material
Shielding metallic aluminum / Flame retardant thermoplastic material
Installation method:
Put an arrester in series at the leading end of the interface of lines of the protected equipment.”OUT” is equipment end and “IN” is incoming line end.Connect the arrester ground terminal and lightning protection ground lead well (suggested earth resistance≤4Ω)
