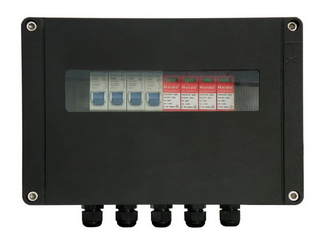

EX explosion proof lightning protection box HD-D380（220）C-EX

With certification of EX explosion proof function, it's more protective. It's applicable to Grade 3 lightning protection of general

supply in building, machine room, plant, enterprise and some other operating environment, which can restrain the overvoltage

on the power line effectively and make sure the safe operation of electronic equipment and other utilization equipment.


	Technical Parameter List:






















						Model









						HD-D380(220)C-EX60









						HD-D380(220)C-EX40









						HD-D380(220)C-EX20












Nominal working voltage Un





						380V/220V






						380V/220V






						380V/220V







Maximum continuous working voltage Uc





						385V/275V






						385V/275V






						385V/275V







Nominal discharge current In（8/20μs）





						30KA






						20KA






						10KA







Maximum discharging current Imax（8/20μs）





						60KA






						40KA






						20KA







Voltage protection level Up





						2KA






						1.6KV






						1.2KV







Prepositive overflowing protection





						63A






						32A






						15A

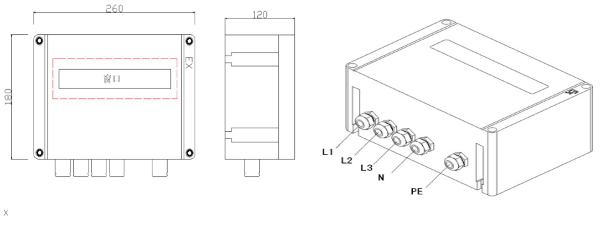

Dimension





						260×180×120mm







Response time Ta





						≤25ns







Operating temperature range Tup





						-40℃至+70℃







Section of minimum installed conductor





						6mm2multi-folded wire







Explosion proof function





						Yes







Protection grade





						IP67







Sheathing material





						Aluminum alloy







Mode of connection





						Parallel







Protection mode





						4+0/3+1/1+1/2+0
