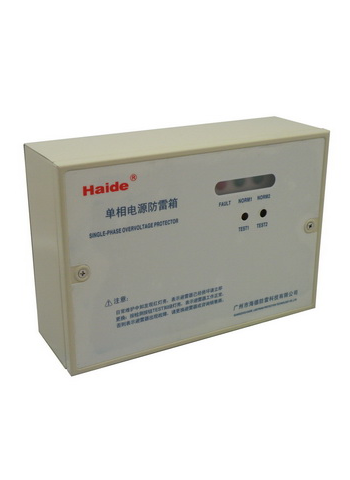

Electric
surge protector of low-voltage distribution system, which is in the
form of a box, is designed according to IEC standard. It has
invalidation detection indication,overflowing and overheating
protection, and powerful discharge capacity of lightning current. It's
applicable to the protection of buildings' general supply system against
lightning. This lightning arrester is very convenient to be maintained.
It connects with the circuit in parallel and has no limit to the power
of equipment fixed later.
|
Model
|
HD-D220B-XS60
|
HD-D220C-XS40
|
HD-D220C-XS20
|
|
Nominal working voltage Un
|
220V
|
220V
|
220V
|
|
Maximum continuous working voltage Uc
|
275V
|
275V
|
275V
|
|
Nominal discharge current In （8/20μs）
|
30KA
|
20KA
|
10KA
|
|
Maximum discharging current Imax（8/20μs）
|
60KA
|
40KA
|
20KA
|
|
Voltage protection level Up
|
2KV
|
1.6KV
|
1.2KV
|
|
Prepositive overflowing protection
|
63A
|
32A
|
16A
|
|
Response time Ta
|
≤25ns
|
|
Operating temperature range Tup
|
-40℃to+70℃
|
|
Working condition indication
|
Green light means work normally,red light means fault indicaiton.
|
|
Section of minimum installed conductor
|
6mm2 multi-folded wire
|
|
Protection grade
|
IP20
|
|

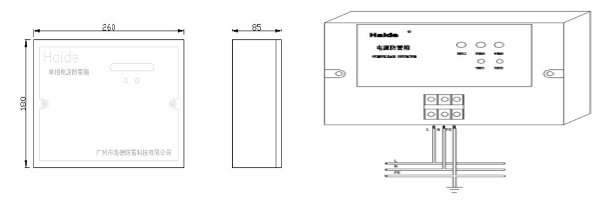

External dimension
|
260×180×85mm
|
|
Sheathing material
|
Metal spraying
|
|
Mode of connection
|
parallel connection
|
|
Protection mode
|
4+0/3+1/1+1/2+0
|
Installation method：
Ground the null line repeatedly when Long-distance overhead incoming lines enter buildings.
Plug the power phase line (L) and null line (N）into
corresponding connector of the electric surge protector and make sure
it's firm and reliable. Connect the ground terminal of arrester with the
ground lead of lightning protection appropriately (recommended earth
resistance ≤4Ω).
Suggested specification of the lead wire: no less than 6mm2, short and straight.
