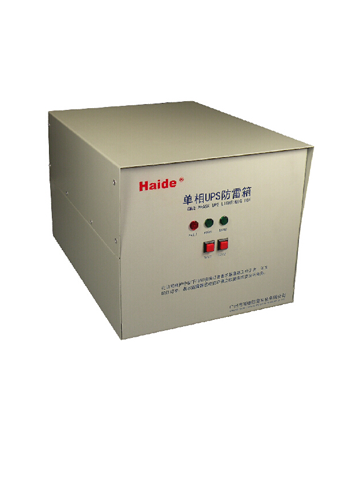

	  Lightning protection box for UPS computer










	This
 product is suitable for lightning and surge protection of single-phase,
 three-phase power lines of lightning protection zone LPZ1 or LPZ2 to
LPZ3 (grade D or III). Vital components of this product adopt the advanced high capacity surge absorber member MOV，and
 have passed the burn-in screen with stable quality and quick response
time. Product in series is superior to that of parallel connection in
protective property. It has lower output voltage limit and can protect
the equipment effectively. With LC filter circuit and current limiting
device, its protection grade can reach IP30. This kind of product is of
complete function, convenient installation, and the function of
operating light as well as fault detection.

























						Model






						HD-BUPS8/10






						HD-BUPS6/7






						HD-BUPS6/5






						HD-BUPS4/4










						Nominal
  working voltage Un






						220V






						220V






						220V






						220V










						Maximum
  continuous working voltage Uc






						275V






						275V






						275V






						275V










						Nominal discharge current In （8/20μs）






						40KA






						30KA






						30KA






						20KA










						Maximum discharging current Imax（8/20μs）






						80KA






						60KA






						60KA






						40KA










						Voltage
  protection level Up






						2.4KV






						1.6KV






						1.6KV






						1.2KV










						Prepositive
  overflowing protection






						63A






						63A






						32A






						32A










						Power






						10KW






						7KW






						5KW






						4KW










						External
  dimension






						360*250*230mm










						Response
  time Ta






						≤25ns










						Operating
  temperature range Tup






						-40℃至+70℃










						Working status
  indication






						Green light means work normally,red light means fault indicaiton.










						Section
  of minimum installed conductor






						6mm2
  multi-folded wire










						Sheathing
  material






						Metal spraying










						Mode of
  connection






						series
  connection










						Protection mode






						Full-protection

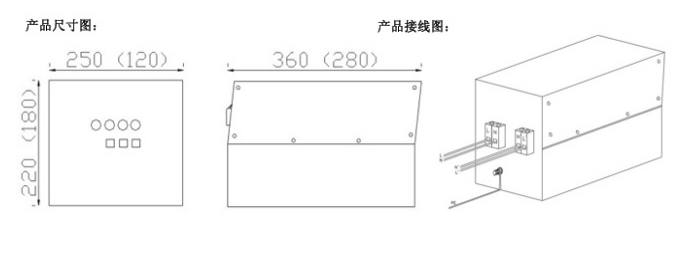

	Installation method：











	Ground the null line repeatedly when Long-distance overhead incoming lines enter buildings.




	Plug the power phase line (L) and null line (N）into
 corresponding connector of the electric surge protector and make sure
it's firm and reliable. Connect the ground terminal of arrester with the
 ground lead of lightning protection well (recommended earth resistance ≤4Ω).




	Suggested specification of the lead wire: no less than 6mm2, short and straight.
