HD-T1-SPC/240

Online Inquiry

ProductName * :

E-mail * :

Contacts :

Tel :

Content :

Validatecode * :

Details

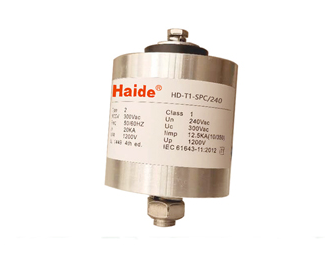

This product is designed for low-voltage output of the main power switchgear to protect the rear-end equipment from direct lightning strikes or fault overvoltage surges introduced from the high-voltage side. This product uses a sealed structure that can be used in a variety of extreme environments to maintain excellent performance, with explosion-proof, waterproof, moisture-proof and anti-corrosion effects. It can be applied to various fields such as wind energy, solar energy, petrochemical, mining, and electric power.

This product adopts high-energy type semiconductor device, low residual voltage, impact resistance, installed in sealed metal casing, self-heating function and over-current over-current tripping function, which can function as explosion-proof and fireproof.

Model	HD-T1-SPC/240	HD-T1-SPC/400	HD-T1-SPC/480	HD-T1-SPC/690
Nominal working voltage Un	240VAC	400VAC	480VAC	690VAC
Maximum working voltage Uc	300VAC	480VAC	600VAC	860VAC
Rated discharging current In(8/20 us)	20KA	20KA	20KA	20KA
Maximum discharging current Imax（8/20μs）	140KA	140KA	140KA	140KA
Impact current Iimp(10/350 μs )	12.5KA	12.5KA	12.5KA	12.5KA
Voltage protection level Up(In10KA)	1.2KV	1.8KV	2.3KV	3.3KV
Drain currrent Ir	<5 uA	<5 uA	<5 uA	<5 uA
Installation	3+0 3+1	3+0 3+1	3+0 3+1	3+0 3+1
Response time Ta	≤25 ns	≤25 ns	≤25 ns	≤25 ns
Protection grade	IP68	IP68	IP68	IP68
External dimension	φ63.5*95mm	φ63.5*95mm	φ63.5*95mm	φ63.5*100mm
