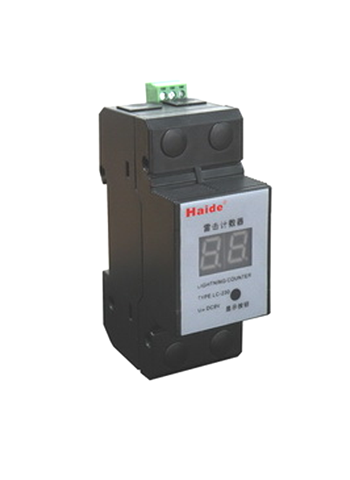

Lightning strike counter HD-LC

1. HD-LC Lightning strike Counter has the following features: accurate counting, strong anti-interference ability, easy to use and install, and it can be used with a variety of lightning protection devices and equipment.

2. The counter is divided into two module standard widths. The counter needs to be powered by 9V zinc-manganese battery. When the digital display is not bright enough, you need to replace the battery.And it is installed in standard guide rail.

The internal lines of lightning counters used in the Haide series power supply lightning protectors are connected, just place the probe coil on the ground line of the corresponding arrester and connect the two wires of the coil to the terminal of the counter module for use. The individual lightning counters are battery-powered.When installed, the sampling coil probes should be connected as specified. The maximum connection distance must not exceed 1 meter.The battery of battery-powered counter should be performed one or two inspections each year.When finding that the battery is insufficient,you should replace it on time.
